I am pretty pleased with all of the amps I have scratch built, there are a few of them in the other thread that "Neilrocks" started here in the DIY forum.

But my most recent build is a re-design of an exisiting amp build. I got snowed in a couple of winters ago and this was my cabin fever project. I designed it from scratch and built it from my own schematics, so I am a bit more proud of this than some of the others. It's not my best cabinet work but the amp design is original and a lot of fun to do.

It was originally a 5F6A Tweed Bassman that I built in 1998/99 in a Black Walnut cabinet with a cane grille. I completely gutted the preamp and rebuilt it as a single channel with an active tone stack and a few other goodies. I had to add an additional preamp tube and socket to power the active tone stack. I had to do some serious cramming to make it all fit so the guts are not as neat as I'd like.

I rebuilt the power amp to have a post PI Master Volume control. The power amp runs on 4 x 6V6's, but I can install just 2 6L6GC's or a pair of 5881's with just a rebias.

It is actually still a work in progress, I have a prototype boost stage for V1 that I haven't installed yet. I redid the power supply to have a switchable dual rectifier from a tube to SS. The rectifier switch is in place but I still need to install a diode circuit to reduce the B+ when switched, so I don't use it right now. I also beefed up the power supply filters caps while I was at it. The two transformers are the original 5F6A set. I have designed a new faceplate but haven't sent it in to the jobber to cut for me as yet.

Since there is nothing left of the original 5F6A Tweed Bassman, I call this my "De-Tweed" amp.

The rest of the pics and schematics at this link --->
http://s238.photobucket.com/albums/ff24 ... s/DeTweed/

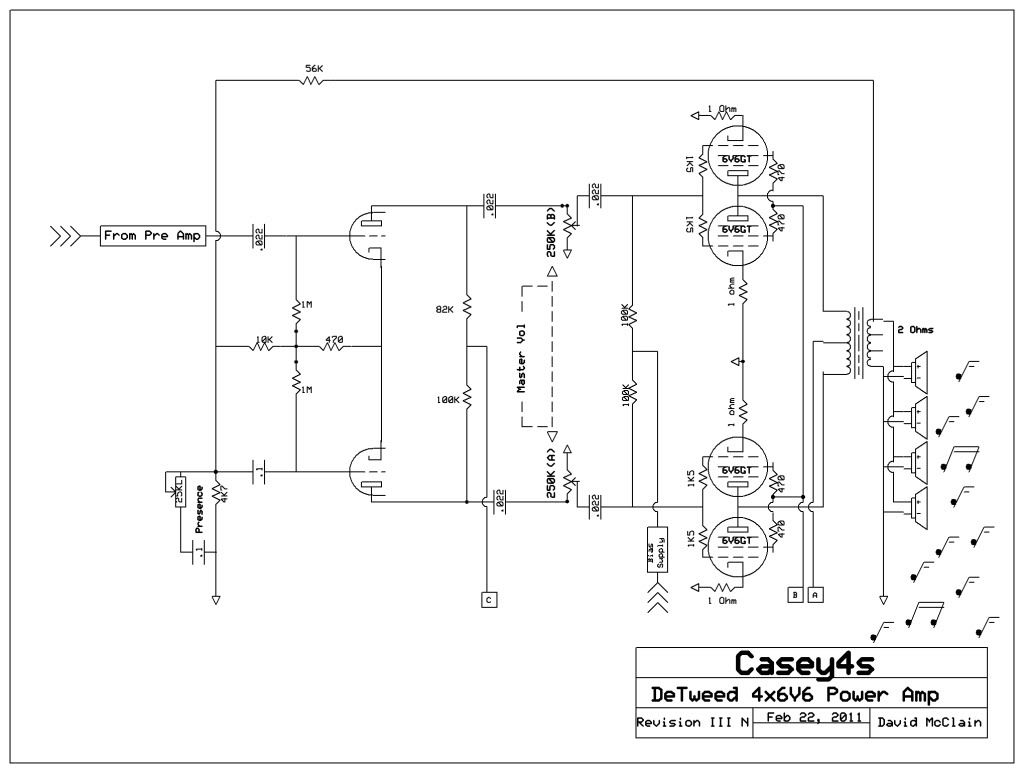

Power amp Schematic

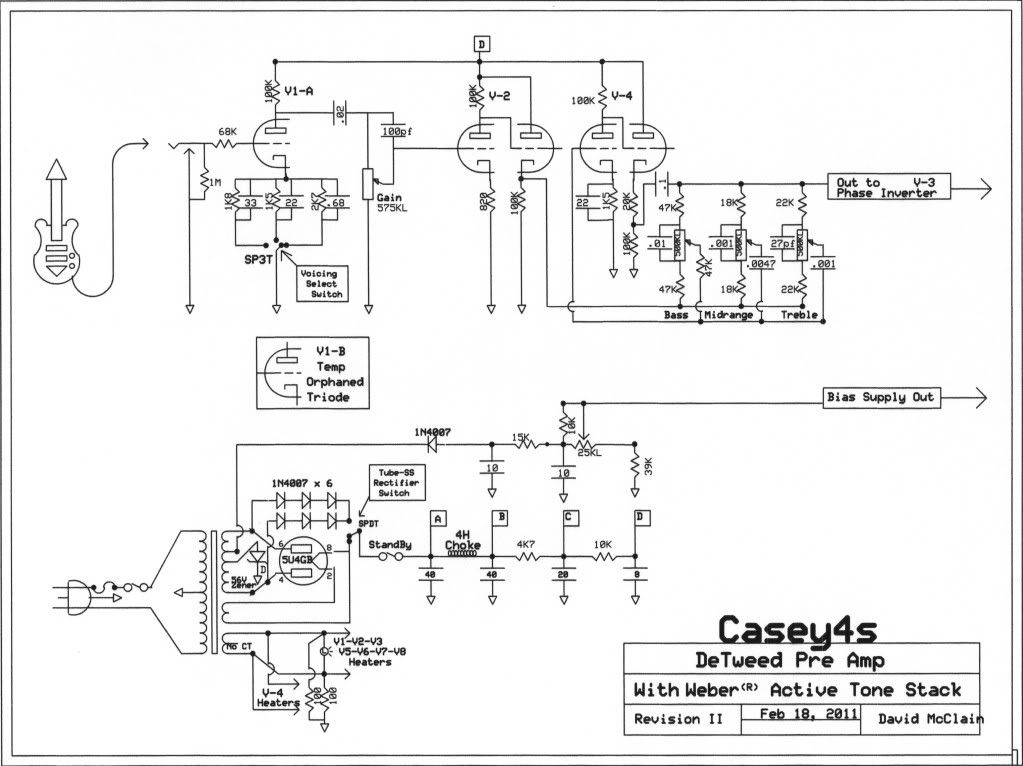

Pre amp Schematic

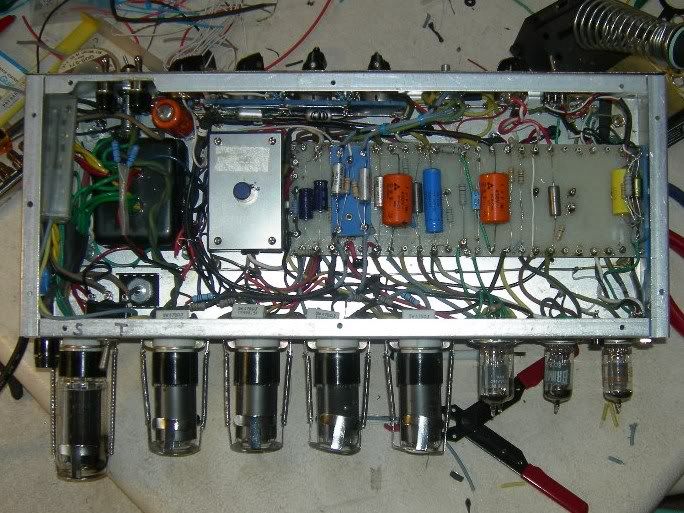

Gut shot

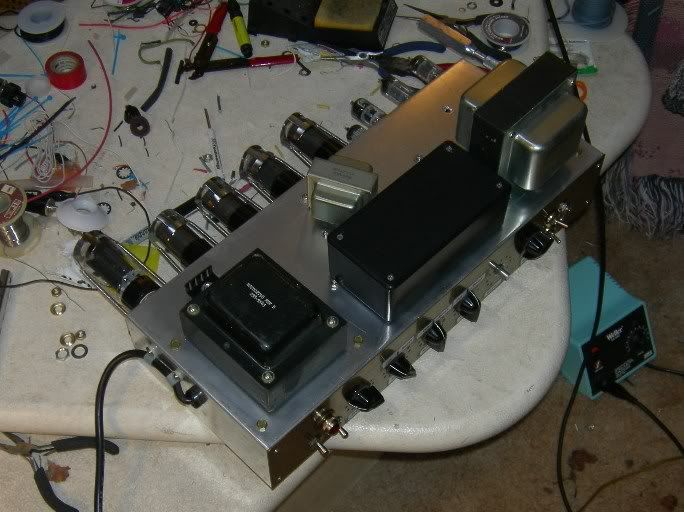

Chassis with "Dog House" for the filter caps


Cabinet with 4 x 10 Alnicos from Black Walnut and cane grille

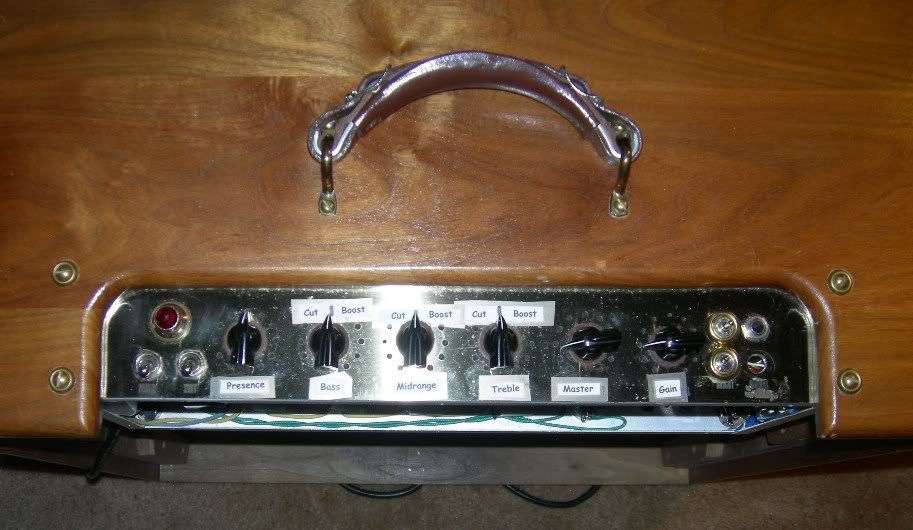

Temporary faceplate labels

[joshatatlasstands]

very cool. I'm a noob to amp building, One of these days though I'll build my first real tube amp.

I notice you have a sherry..me too!!

[Casey4s]

very cool. I'm a noob to amp building, One of these days though I'll build my first real tube amp.

I notice you have a sherry..me too!!

I think you'll find that building an amp isn't really that difficult. Like anything else it takes a lot of planning, and you obviously have those skills. There are a lot of kit amps on the market now, and a lot of first time builders use kits to get more confidence.

[joshatatlasstands]

I will likely start with a kit build. I can solder well, but controlling electrons is a different story.

[Casey4s]

I will likely start with a kit build. I can solder well, but controlling electrons is a different story.

There are a LOT of great kits on the market. It all depends on the features you want the amp to have and the amount you wish to spend. I have seen some very nice kits starting around $200 (or less) and up to around $1000. If you can solder and follow instructins, you can build a kit amp. Making a cabinet of some kind should be a no brainer for someone with your obvious skills. Just decide on what level of amplifier you wish to start out with.

[joshatatlasstands]

I'm thinking a 5 or 8 watter would be best for me right now, but I'd want a 12 in it.

[Casey4s]

I'm thinking a 5 or 8 watter would be best for me right now, but I'd want a 12 in it.

For a 5 watter, the MOD 102 kit is only $215, without a cabinet and speaker. It is a very nice sounding little amp and can drive a 12" speaker easily. You can build it as a head and speaker cab. It can be built as a combp but really needs a different chassis like a Hammond 1444-18.

Look at the MOD 102 link in my signature to read about the kit and there is a YouTube sound clip of the amp as well.

[rock flag and eagle]

I don't have too many builds under my belt, but my favorite has been my Fulltone OCD clone. Nothing fancy for the enclosure, I bought it powder coated and used paint pen to mark it. I etched the board (as I've done on most my builds). I reason this is my favorite is because it sounds so good, great on it own for mild gain, great as a boost and sounds great with all the guitars and amps I've tried it with.
I've got a univibe clone pcb waiting for me to build - I know once I get that done, my favorite will be between that and the OCD.

[Casey4s]

I don't have too many builds under my belt, but my favorite has been my Fulltone OCD clone. Nothing fancy for the enclosure, I bought it powder coated and used paint pen to mark it. I etched the board (as I've done on most my builds). I reason this is my favorite is because it sounds so good, great on it own for mild gain, great as a boost and sounds great with all the guitars and amps I've tried it with.
I've got a univibe clone pcb waiting for me to build - I know once I get that done, my favorite will be between that and the OCD.

Sounds like a cool project, especially if you are really happy with the outcome

Got any pics?

[rock flag and eagle]

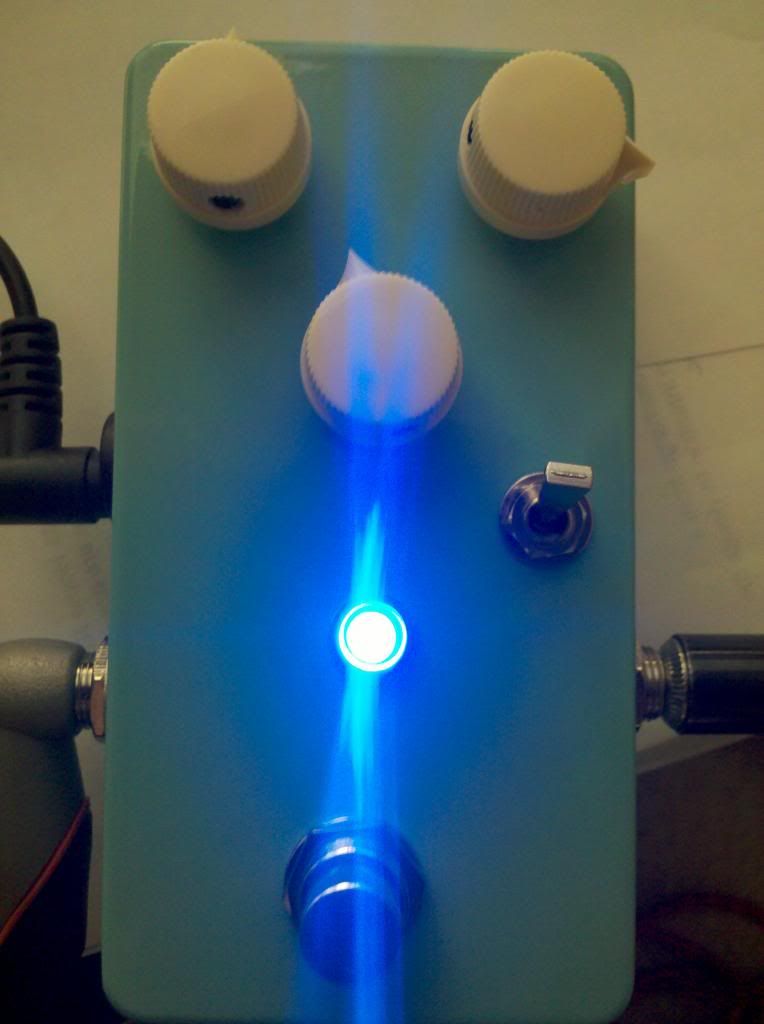

Nothing special, this is before I added the paint pen and no internal shot because it's a big spaghetti mess in there, but man it sounds good.
